PRICE

$175.00

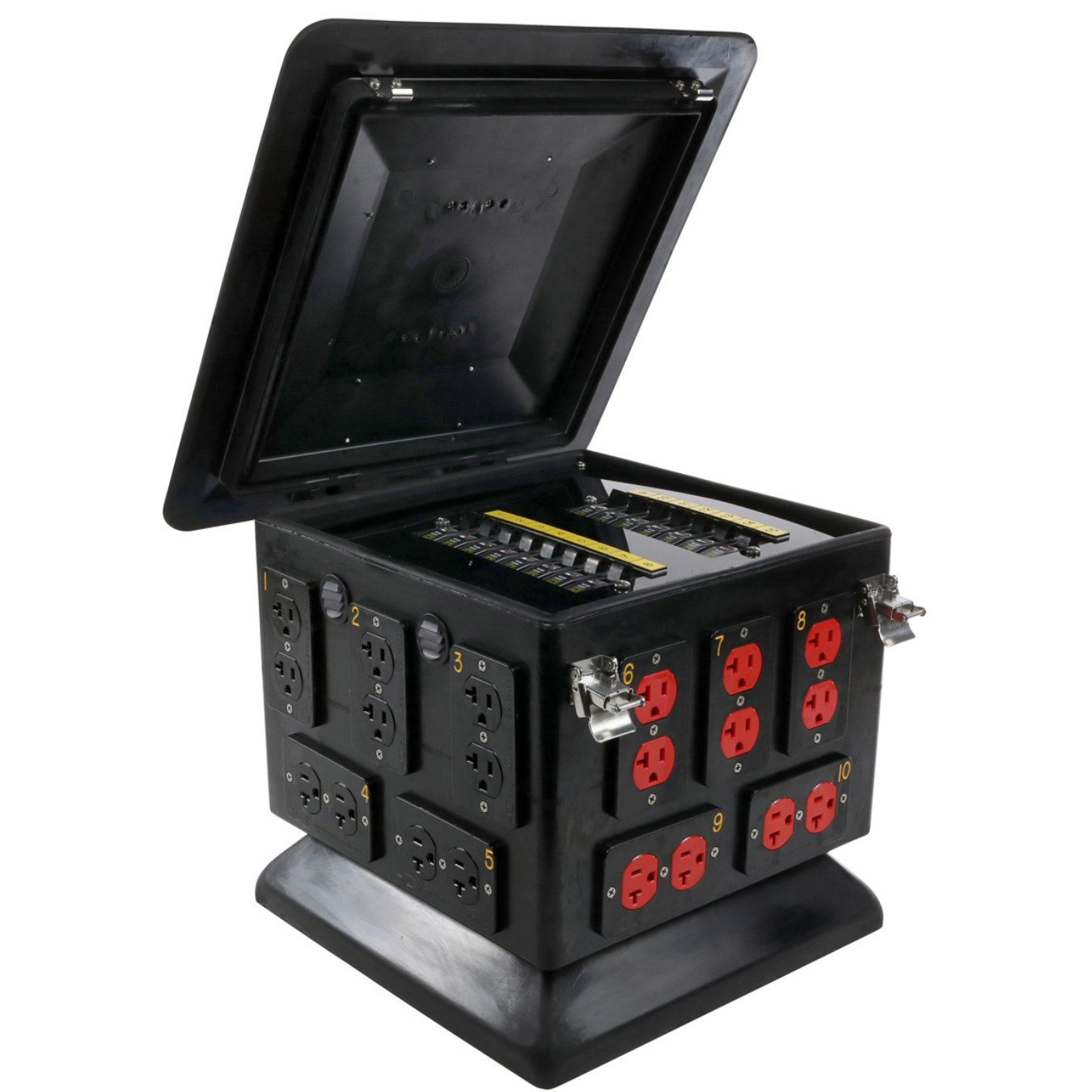

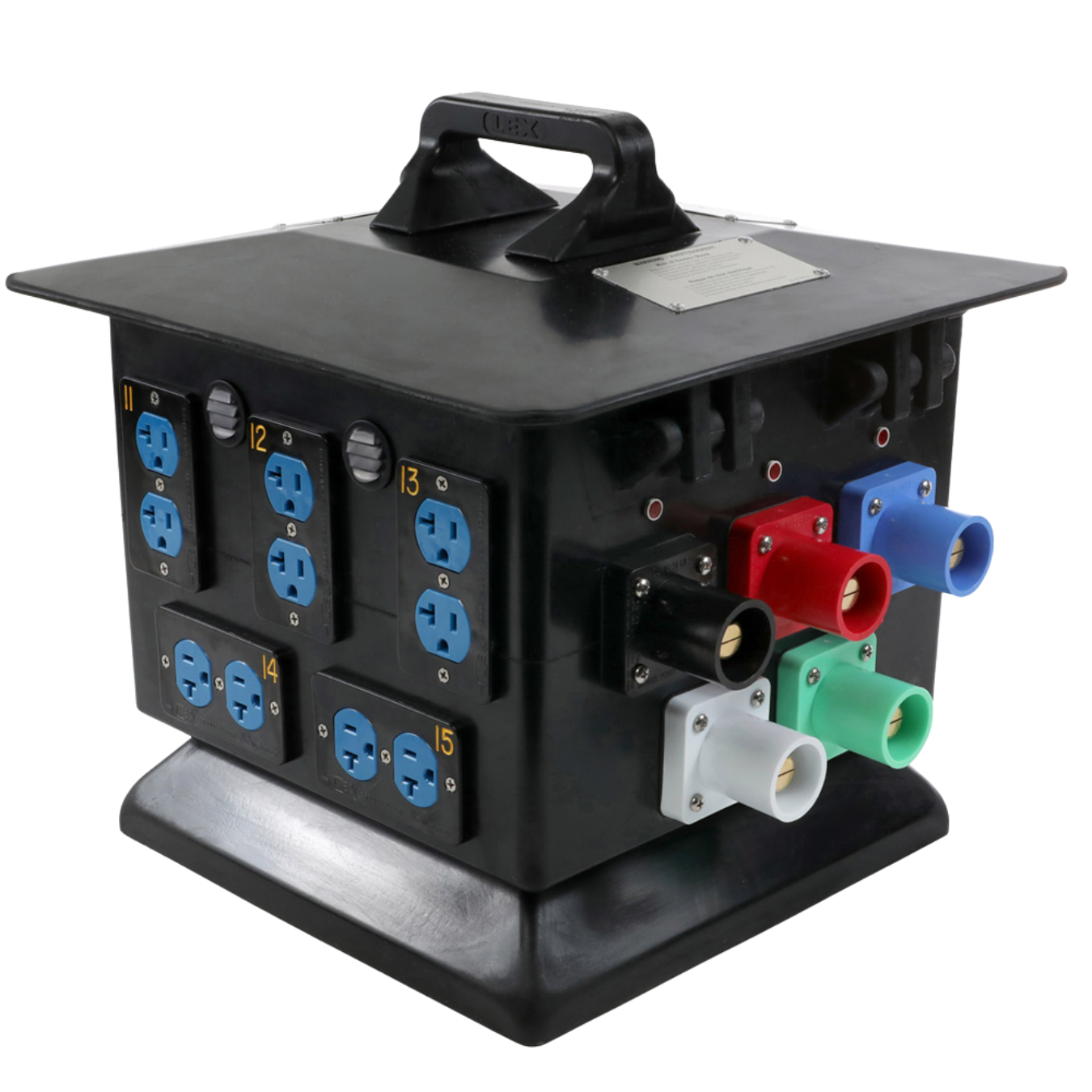

The Lex 100 Amp Pagoda to Duplex Receptacles Power Distribution Rental is a 100A 120/208 VAC, (1) Set of (5) 16 Series Cam-type, Single Pole Males (Inlets) to (15) NEMA 5-20 (Edison) Straight Blade Receptacles (Outlets), Pagoda.

  • Rating: 100 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
Description

The Lex 100 Amp Pagoda to Duplex Receptacles Power Distribution Rental is a 100A 120/208 VAC, (1) Set of (5) 16 Series Cam-type, Single Pole Males (Inlets) to (15) NEMA 5-20 (Edison) Straight Blade Receptacles (Outlets), Pagoda.

  • Rating: 100 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
  • Environmental Rating: NEMA Type 1 (Indoor Use)
  • Input: (1) set of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BRBWG color-coded, cam-type inlets, panel mount
  • Feed Thru: None
  • Main Breaker: None
  • Main Breaker: None
  • Output: (15) NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, panel mount
  • Overcurrent Protection: (15) 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
  • Enclosure Type: Pagoda
Additional information
Weight 55 lbs
Dimensions 15 × 15 × 15 in
