Nationwide Professional Stealth 300 LED Hybrid Rental

Nationwide Professional Stealth 300 LED Hybrid Rental

Key Features:

• Flicker Free for Film & TV
• 300W LED Engine – 13,000 Lumen Output
• Wide Zoom Range – 3.5 – 46º Motorized Zoom
• Crisp Optics – Flat Field Projection + Auto Focus
• Vibrant Color Mixing – CMY/CTO Color Mixing + 11 Dichroic Colors
• Dynamic Effects – 20 Gobos | Prism | Iris
• 300W 7,000K LED Engine – 50,000 Hour Life
• 7-Slot Interchangeable Rotating Gobo Wheel
• 13-Slot Fixed Gobo Wheel
• On-Board + DMX Adjustable Fan Operation
• Variable CMY + CTO Color Mixing
• (1) 11 Slot Dichroic Color Wheel
• Linear Frost Filter
• 16-Blade Motorized Iris + Macros
• 8-Facet Rotating Circular Prism
• DMX, ArtNet, RDM, W-DMX
• Battery Powered On-Board Interface
• PowerCon True1 Connector
• 5-Pin XLR Connector
• 25 Channel DMX Mode

Optical:

• Source: 300W LED
• Color Temperature: 7,000K
• Luminous Flux: 13,000 Lumens
• Lux: (3.5°) 36,000 lux | (46°) 956 lux @ 5M
• CRI: 70+
• PWM: 1,200Hz / 13,672Hz (DMX Adjustable)
• Source Life Expectancy: 50,000 Hours
• Zoom Range: 3.5° – 46° High-Speed Motorized Zoom
• Lens diameter: 120mm
• Focus: 16-Bit Motorized + Auto Focus

Color System:

• Color Mixing: Linear CMY + CTO
• Color Wheel: 11 Dichroic Colors + UV

Dynamic Effects:

• Rotating Gobos: 7 rotating gobos + open, interchangeable, indexing
• Static Gobos: 13 static gobos + scrolling + gobo shake
• Gobo Size: Outer: 22.9 mm – Image: 15 mm – Thickness: 1.1 mm
• FX Generator: FX macros for Iris
• Prism (Standard): 8-facet circular rotating, indexable
• Frost: Linear
• Iris: Motorized iris

Body:

• Pan Range: 540°
• Tilt Range: 270°
• Pan/Tilt Resolution: 16-bit
• Pan/Tilt Locks: Multi-position pan/tilt locks
• Feedback: Automatic repositioning

Control:

• Protocols: DMX512, RDM, Art-Net*, W-DMX
• DMX channels: 25ch Standard
• RDM: RDM for remote monitoring and settings

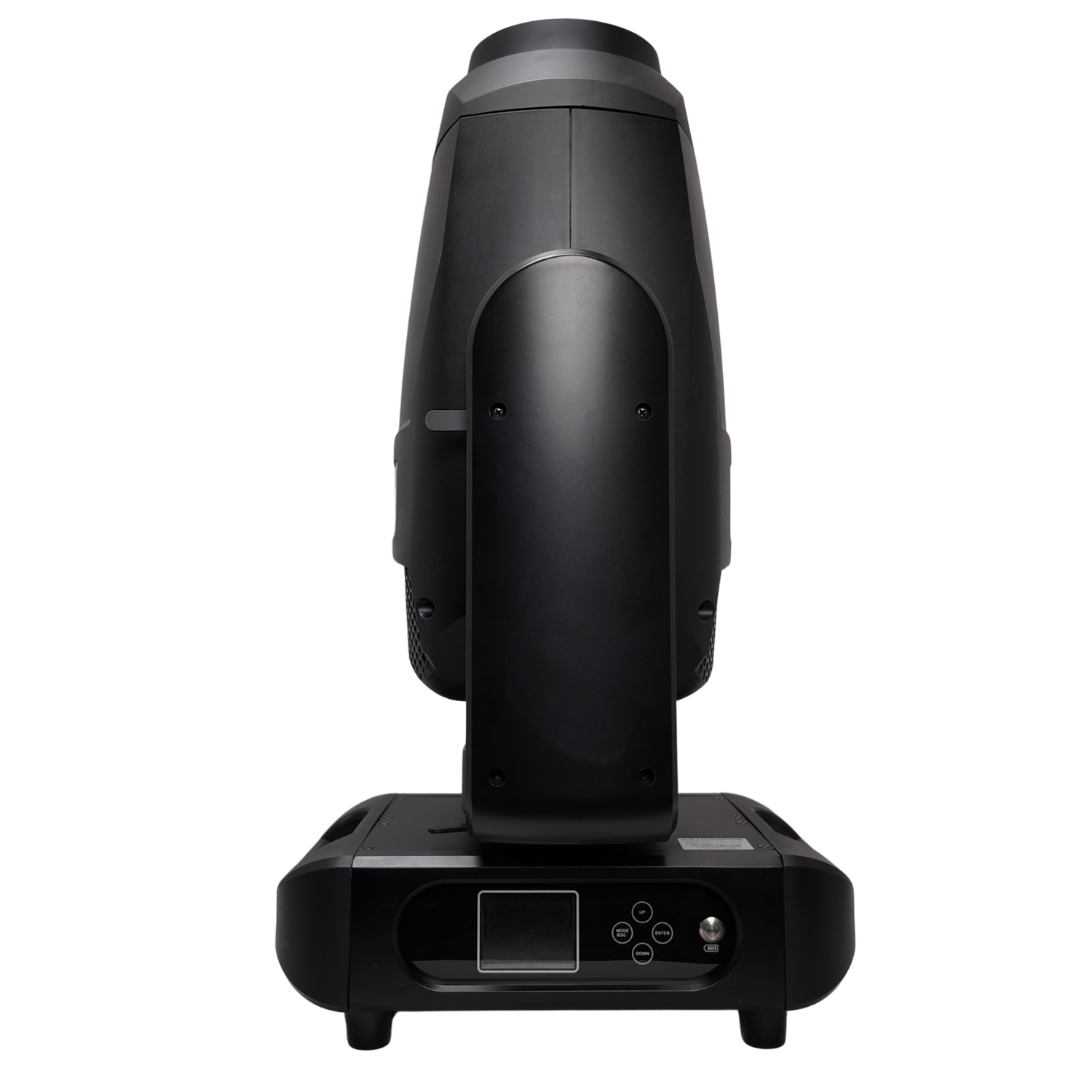

• Display: LCD high-resolution display with auto-rotate

Electronics:

• Dimmer: 16-bit linear 0 ~ 100% electronic dimmer
• Strobe / Shutter: 1 – 20 Hz, electronic
• Display Battery: 3.7v self-charging lithium-ion battery backup
• Operating Temperature: -10° ~ +50°
• LED Control: DMX adjustable PWM, flicker-free operation

Electrical:

• Power Supply: 100-240V – 50/60Hz
• Max Power Consumption: 500W
• Power factor: >0.96

Physical:

• Ingress Protection Rating: IP20

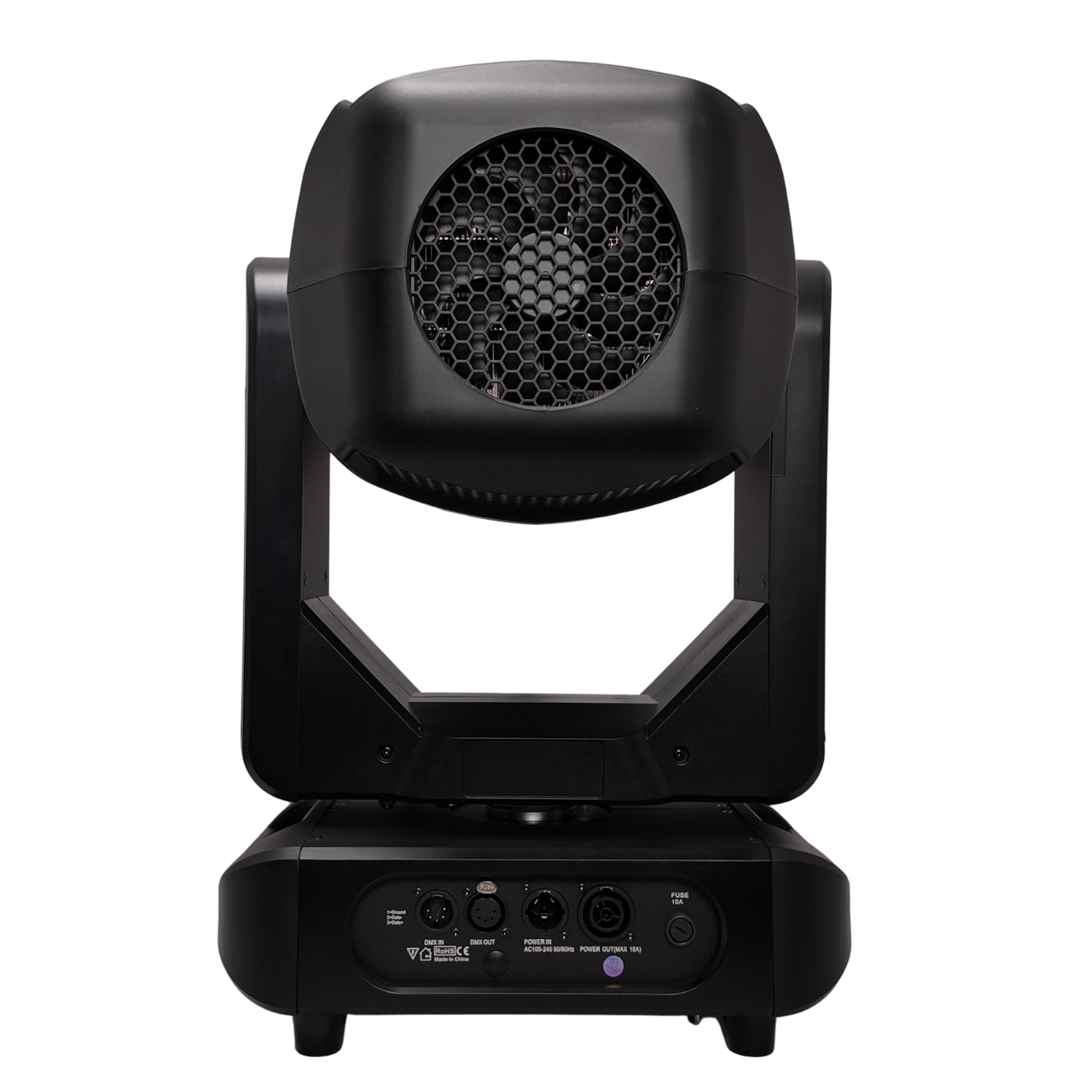

• Cooling: Low noise, low-velocity multi fan-array
• Rigging: Quick-turn omega bracket
• Pan / Lilt Lock: 0 & 90 locking positions

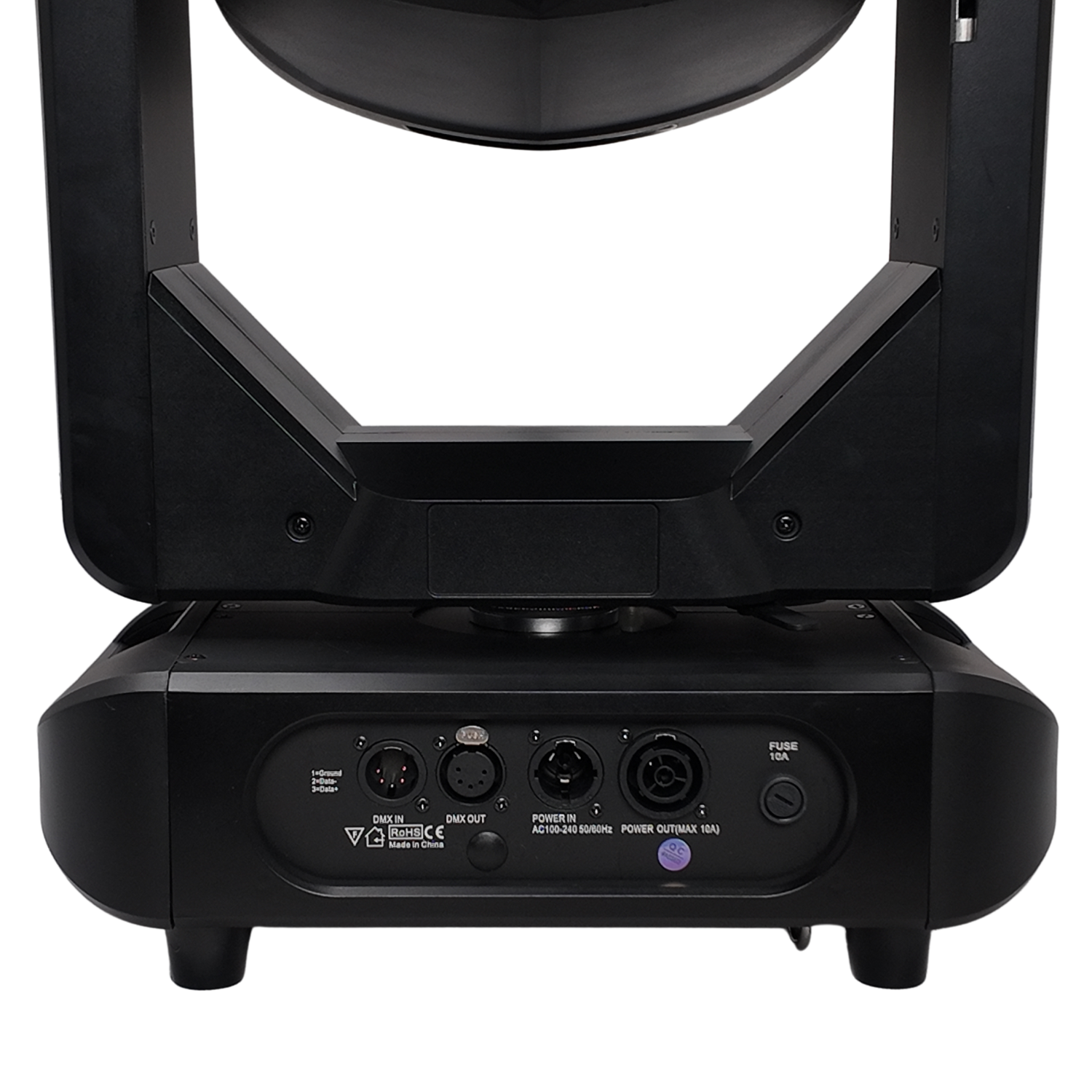

• Signal connection: 5-Pin XLR IN/THRU
• Power connection: Neutrik powerCON TRUE1
• Dimensions (WxHxD): 13.2″ x 22.3′ x 15.3”
• Weight: 33lbs / 15kg

Weight	33 lbs
Dimensions	15.3 × 13.2 × 22.3 in
